Stream Deck (Experimental)

DashForge includes a Stream Deck plugin source package for cockpit control, live telemetry keys, and DFBridge game inputs.

The plugin talks to DashForge through the local MCP/REST API. It is independent from the Web Builder.

What You Can Do

• toggle the UDP listener
• start or stop recording
• save the live buffer
• show or hide the performance overlay
• run garbage collection
• switch DashForge tabs
• display speed, gear, RPM, lap, position, fuel, or packet count on keys
• trigger DFBridge keyboard, mouse, or Win32 commands

Enable DashForge API

1. Open DashForge.
2. Go to Settings > AI.
3. Enable MCP Server.
4. Keep port 8791, unless you already use it.
5. Copy the token.

Default API base:

http://127.0.0.1:8791

Install the Plugin

Download DashForge-1.1.0.streamDeckPlugin from Downloads and Companion Tools, then double-click it to install it in the Stream Deck desktop app.

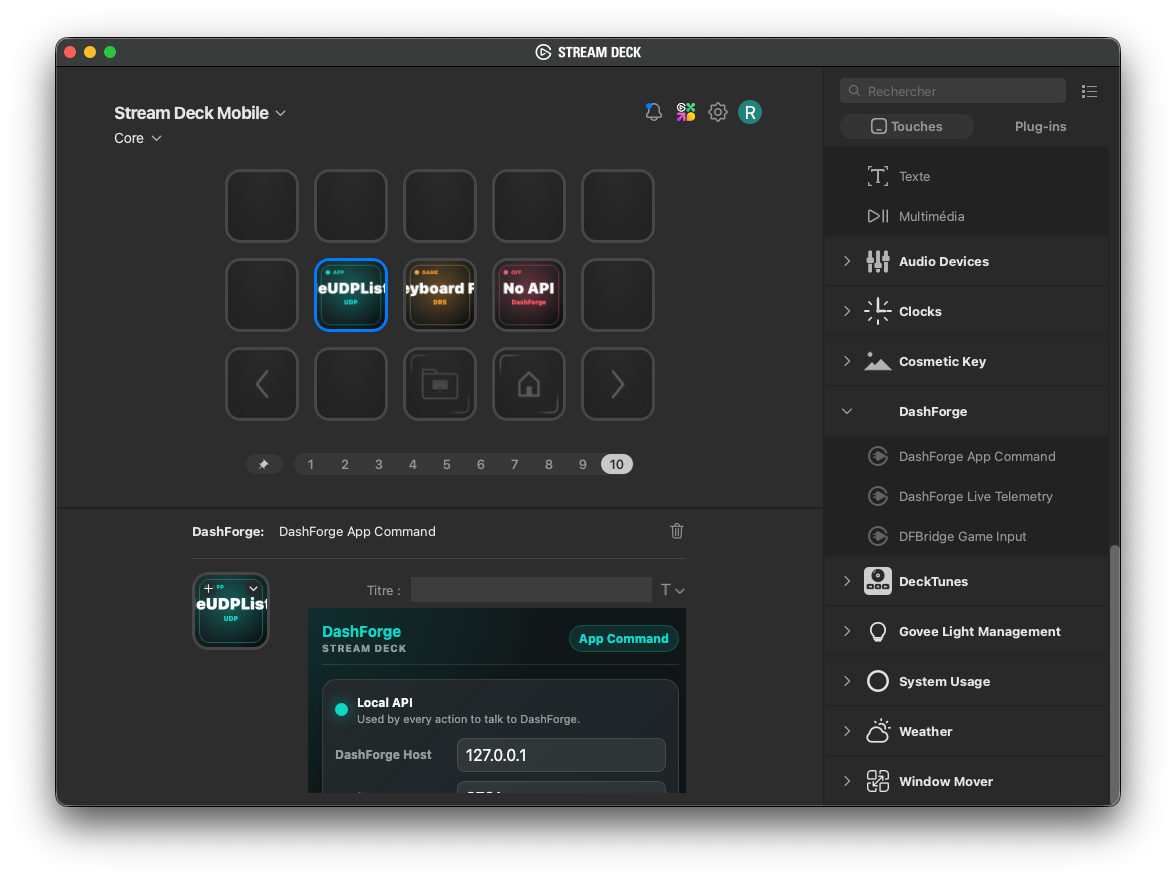

Configure an Action

Every action has these common fields:

Field	Value
DashForge Host	127.0.0.1
DashForge Port	8791
MCP/API Token	token copied from Settings > AI

DashForge App Command Action

Use this for DashForge app control. This action does not send game input; it changes DashForge state such as UDP, recording, tabs, overlays, and maintenance.

Examples:

Button	Command	Arguments
UDP	toggleUDPListener	empty
REC	toggleRecording	empty
Buffer	saveLiveBuffer	empty
Perf	setPerformanceOverlay	{ "enabled": true }
GC	garbageCollect	empty
Data	selectTab	{ "tab": "data" }

Arguments must be valid JSON. Leave the box empty when the command has no arguments.

DashForge Live Telemetry Action

Use this for live values on keys.

Good first fields:

Label	Field	Suffix	Decimals
SPD	speedKmh	km/h	0
GEAR	gear	empty	0
RPM	currentEngineRpm	empty	0
LAP	lapNumber	empty	0
POS	racePosition	empty	0
FUEL	fuel	%	0
UDP	packetCount	empty	0

The plugin polls /api/status. The default refresh is 250 ms. Use 100-250 ms for development or quick HUD feedback, and 500-1000 ms for values that do not need to move quickly.

DFBridge Game Input Action

Use this for game control through DFBridge. This action always calls sendBridgeCommand and exposes game-input fields directly.

Example DRS button:

Field	Value
DFBridge Host	127.0.0.1
DFBridge Port	8765
Input Kind	keyboard
Code	F
Mode	tap
Duration ms	80

DashForge sends this through the sendBridgeCommand command, so DFBridge must be running with its command listener enabled.

gamepad is protocol-reserved for future Bridge support. The current Bridge does not create a virtual gamepad, so Stream Deck game-control actions should use keyboard, mouse, or Win32 inputs.

Troubleshooting

If the keys show DashForge OFF:

• confirm DashForge is running
• enable Settings > AI > MCP Server
• verify host, port, and token
• check that no firewall blocks local HTTP requests

If Bridge keys do nothing:

• start DFBridge
• enable its command listener
• verify the command port, usually 8765
• confirm the code matches the selected input kind
